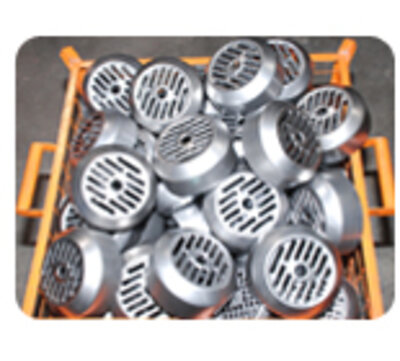

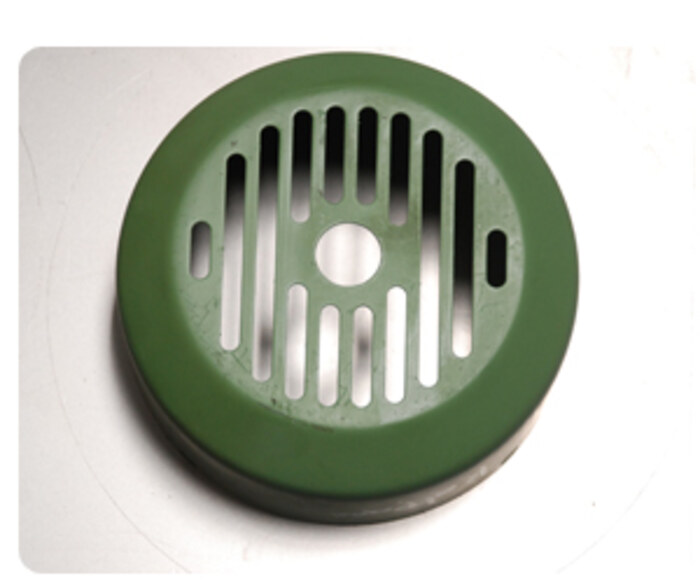

M.S. Fan Cowls
We manufacture 63 frame size to 180 frame size fan covers in mild steel, supplied ready to fit onto electric motors. Below is the range of cover sizes we produce as standard; sizes outside this range can be quoted against a drawing or sample.
| Size (mm) | Size (mm) | Size (mm) | Size (mm) |
|---|---|---|---|
| 115 x 45 | 157 x 64 | 175 x 85 | 215 x 95 |
| 115 x 50 | 157 x 66 | 175 x 90 | 205 x 120 |
| 115 x 55 | 157 x 70 | 175 x 100 | 227 x 95 |
| 132 x 45 | 157 x 72 | 182 x 80 | 255 x 110 |
| 132 x 50 | 157 x 80 | 182 x 90 | 255 x 115 |
| 132 x 55 | 157 x 90 | 185 x 85 | 262 x 110 |
| 132 x 60 | 159 x 75 | 195 x 95 | 305 x 130 |
| 138 x 65 | 163 x 75 | 205 x 80 | 305 x 140 |
| 138 x 68 | 175 x 77 | 205 x 90 | 318 x 140 |
| 157 x 56 | 175 x 80 | 215 x 91 | — |
Terminal Boxes
M.S. terminal boxes for electrical motors from 56 frame to 160 frame, made at our Mettupalayam Road plant and supplied as original equipment to motor manufacturers. Frame size, mounting and cable-entry details are matched to each customer's drawing.
Stampings & Motor Laminations

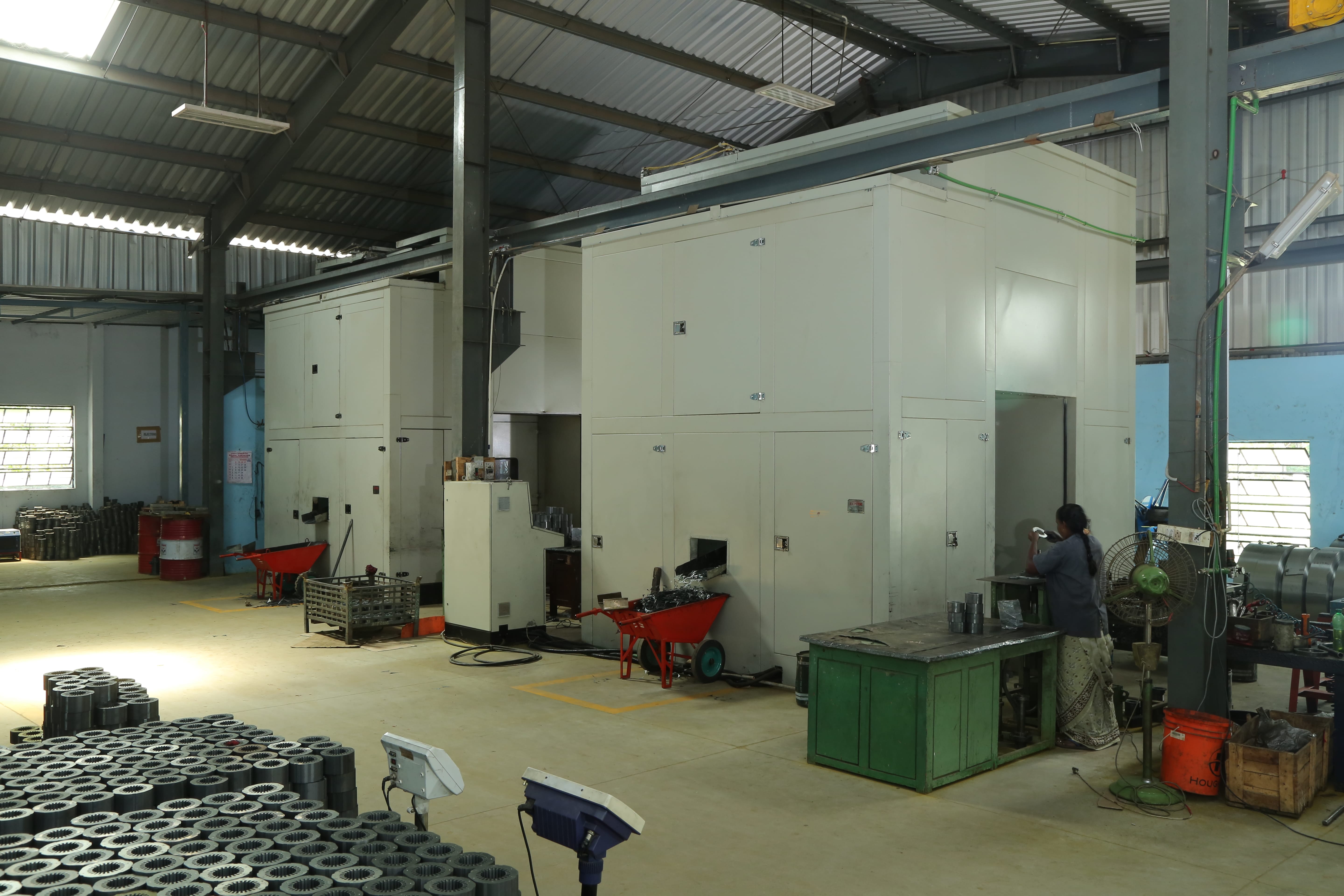

We began manufacturing motor lamination stampings in April 2012. Running two high-speed presses, we produce components up to 200mm in diameter and currently supply motor laminations to a leading pump manufacturing company in Coimbatore.
Custom Press Tooling
Alongside our standard product lines, we hold spare capacity to build tailor-made press tooling components, from 0.5mm to 1.5mm sheet thickness, through a strong tie-up with a modern tool room for design and manufacture to each customer's requirement.
